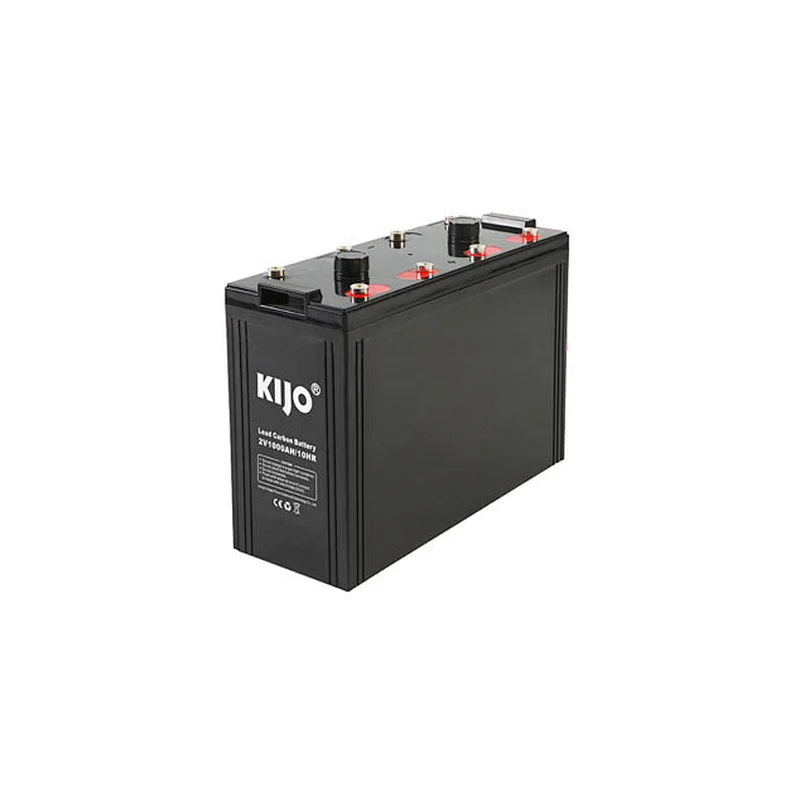

JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)
JPC Series (Lead Carbon Battery)

JPC Series (Lead Carbon Battery)

Model NO.
JPC Series
Quantity:

Lead-carbon battery is the combination of lead-carbon dual function negative pole plate which is made of both dual electric layer capacitance carbon material (C) and lead (Pb) to achieve the capacitance & battery feature, then the lead-carbon batteries assembled by lead-carbon negative pole plate and positive pole plate.
As one of the leading solar energy battery manufacturers/suppliers/companies in China, KIJO provides quality solar power batteries at low price/cost.

Specification of JPC Series (Lead Carbon Battery)

ModelNominal Voltage(V)Capacity
(C10)
DimensionWeightTerminal
(Ah)LengthWidthHeightTotal HeightKgLbs
mminchmminchmminchmminch
JPC12-3412341.8VPC1957.681305.121636.421676.5711.525.35M 6
JPC12-4612461.8VPC1977.761656.501726.771726.7714.632.19M 6
JPC12-5512551.8VPC2299.011385.432058.072088.1917.538.58M 6
JPC12-7012701.8VPC25810.161686.612088.192118.3122.549.60M 6
JPC12-7812781.8VPC35013.781666.541756.891756.8922.850.27M 8
JPC12-8512851.8VPC25810.161686.612118.312148.4326.057.32M 6
JPC12-9512951.8VPC30712.091686.612118.312148.4328.061.73M 6

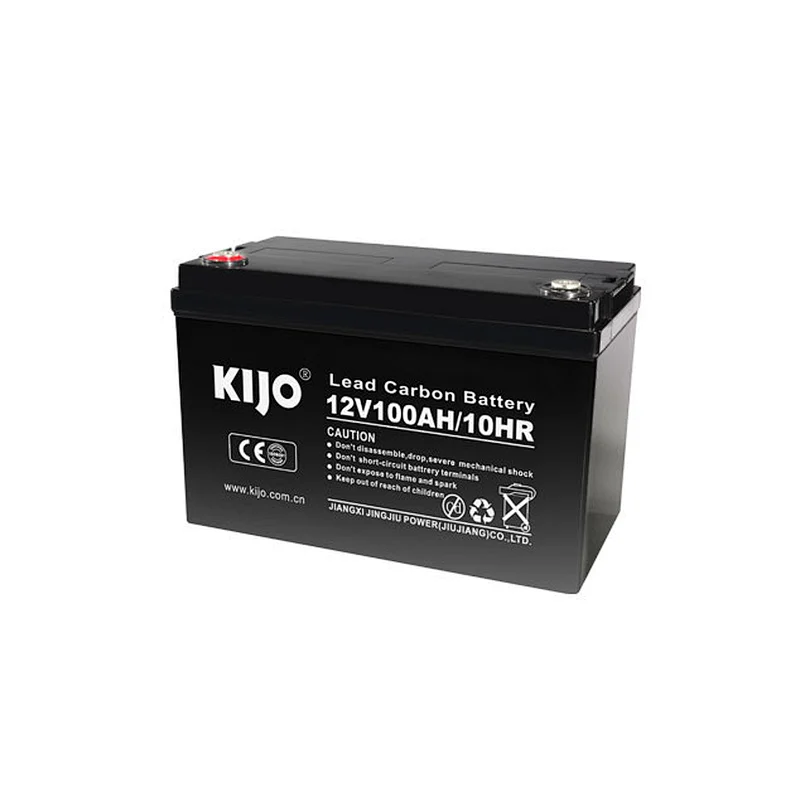

JPC12-100C121001.8VPC33012.991716.732168.502198.6230.867.90M 8
JPC12-100CL121001.8VPC33012.991716.732178.542208.6630.066.14M 8

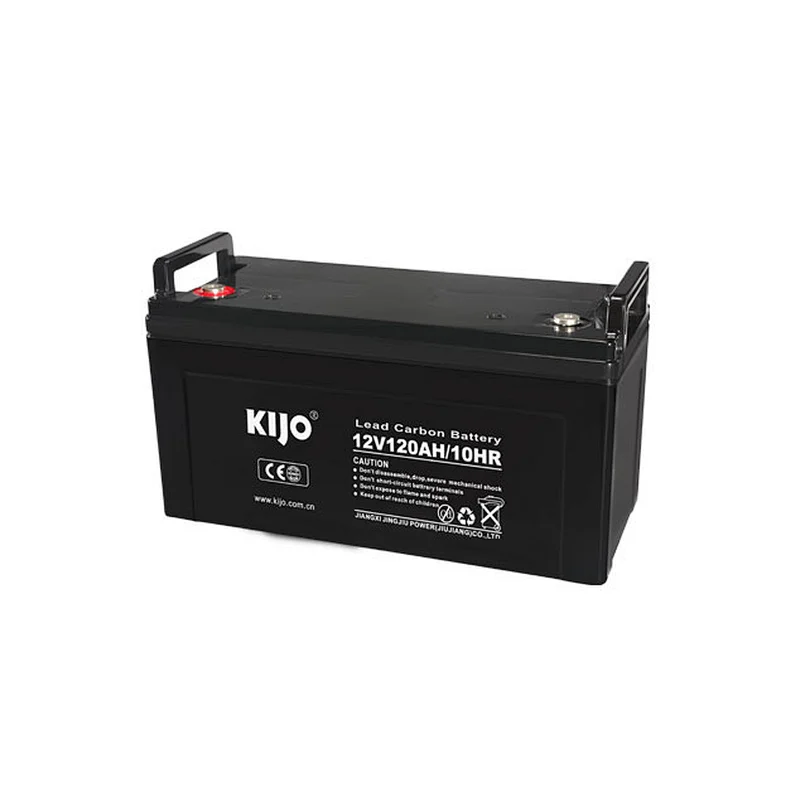

JPC12-120121201.8VPC40716.021736.812379.332379.3337.282.01M 8

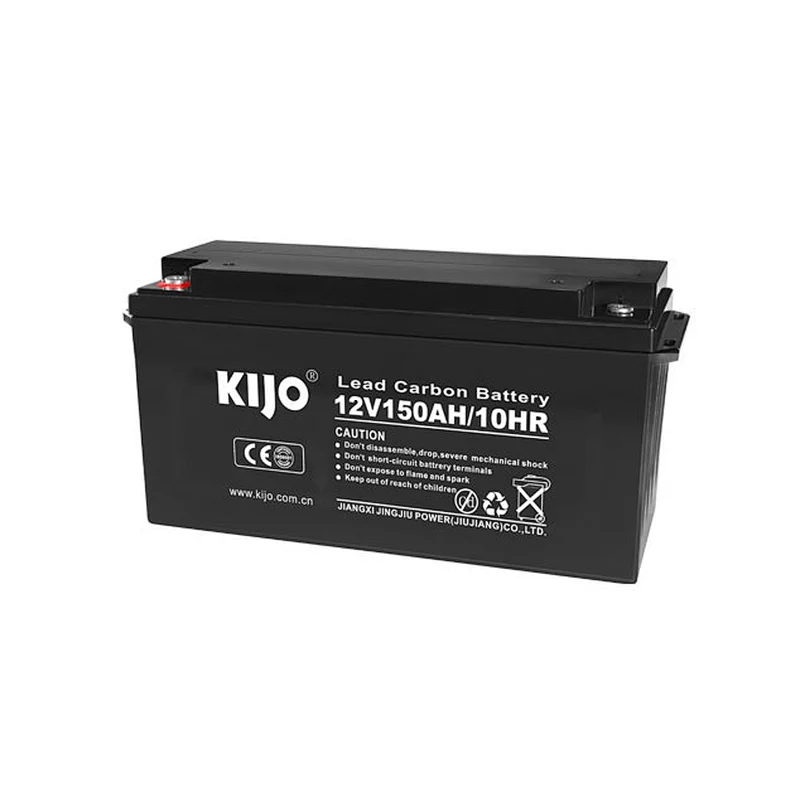

JPC12-150121501.8VPC48419.061706.692419.492419.4947.0103.62M 8
JPC12-200G122001.8VPC52220.552409.452198.622228.7461.5135.58M 8
JPC12-200H122001.8VPC52220.552409.452198.622228.7460.5133.38M 8

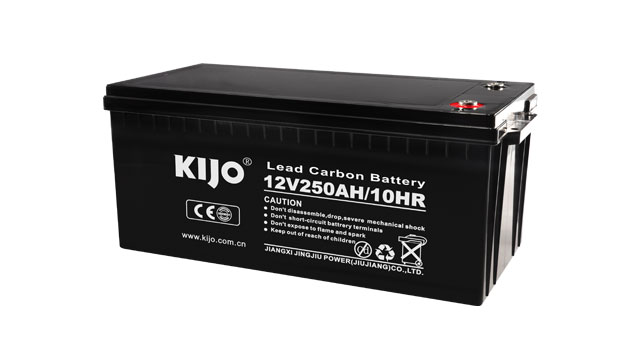

JPC12-250122501.8VPC52020.4726810.552208.662238.7971.0156.53M 8

Characteristic of JPC Series (Lead Carbon Battery)

  • Designed floating service life: 15 years at 25˚C.

  • Cycle usage: 70% DOD above 1900 cycles.

  • Self-discharge rate: ≤ 3% / month.

  • Wide operating temperature range: -35 to 60˚C.

Application of JPC Series (Lead Carbon Battery)

  • New energy storage like wind/solar generating storage

  • New energy vehicle like hybrid electric vehicle and electric bicycle

  • etc.
