Jiangxi JingJiu Power Science& Technology Co.,LTD.330200About KIJO1388 Fushan No.1 Street,Xiaolan Economic Development Zone, Nanchang, Jiangxi, ChinaKIJO Group is a Professional rechargeable storage battery factory, With more than 3,000 employees of which more than 300 are technical engineers, KIJO Group is a china storage battery factory covering an area of more than 500,000,00 Square meters. KIJO battery has passed ISO9001, ISO14001 ISO16949 system certifications and its products comply with international certifications such as IEC, UL, CE, FCC, C-TicK, PSE, RoHS, etc. KIJO Group is a professional power battery factory in China, which is committed to offering better battery solutions to clients all over the world.Jiangxi JingJiu Power Science& Technology Co.,LTD.330200About KIJO1388 Fushan No.1 Street,Xiaolan Economic Development Zone, Nanchang, Jiangxi, ChinaKIJO Group is a Professional rechargeable storage battery factory, With more than 3,000 employees of which more than 300 are technical engineers, KIJO Group is a china storage battery factory covering an area of more than 500,000,00 Square meters. KIJO battery has passed ISO9001, ISO14001 ISO16949 system certifications and its products comply with international certifications such as IEC, UL, CE, FCC, C-TicK, PSE, RoHS, etc. KIJO Group is a professional power battery factory in China, which is committed to offering better battery solutions to clients all over the world.Jiangxi JingJiu Po

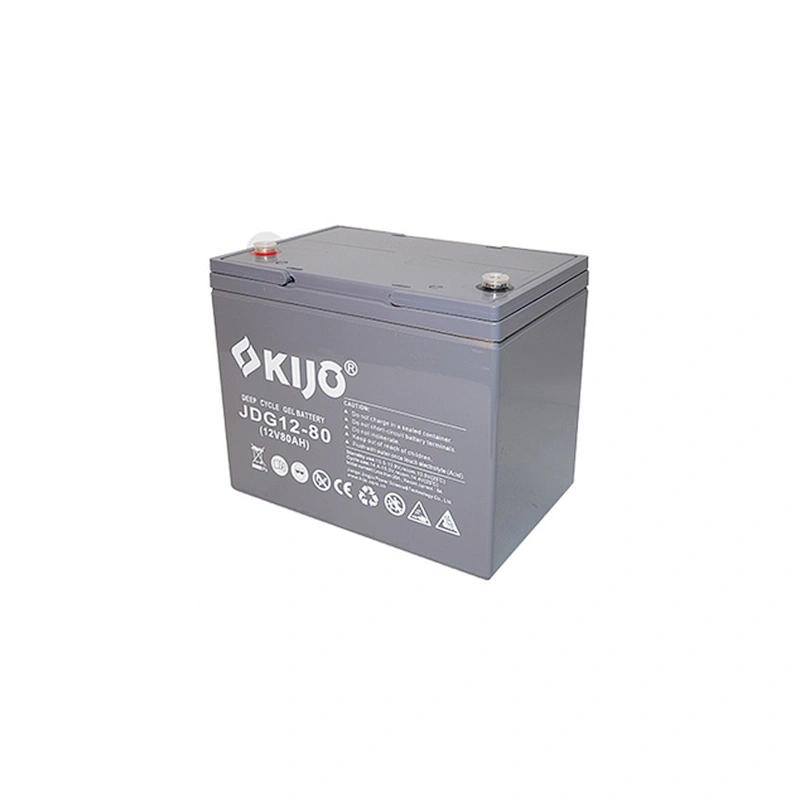

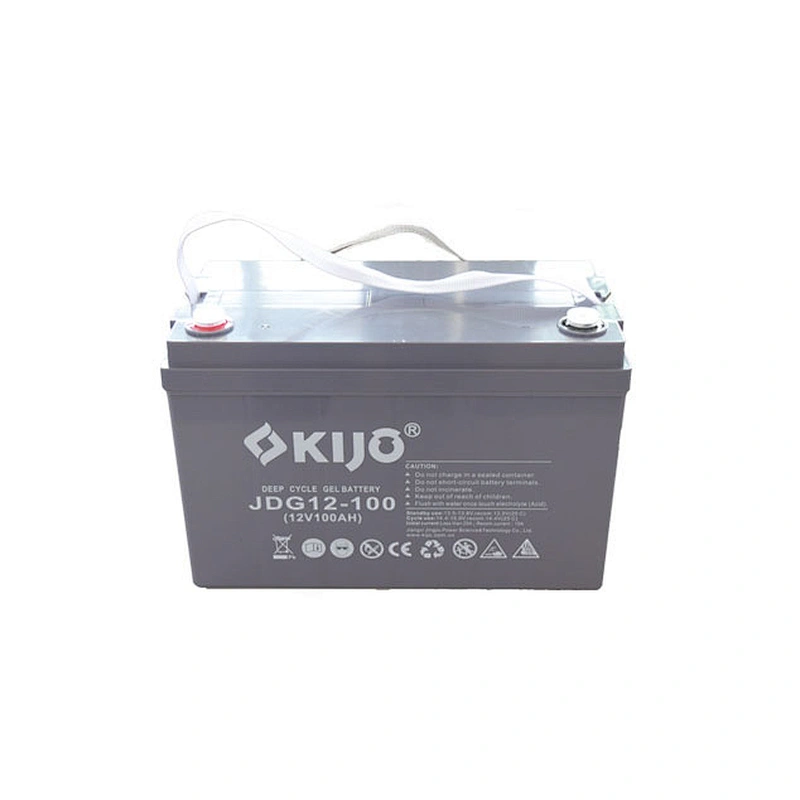

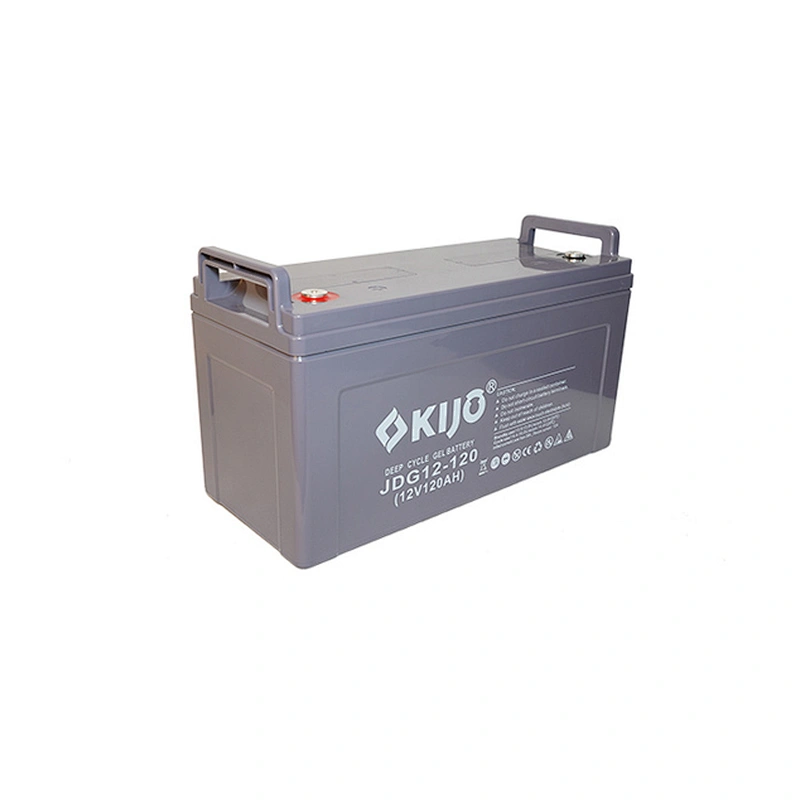

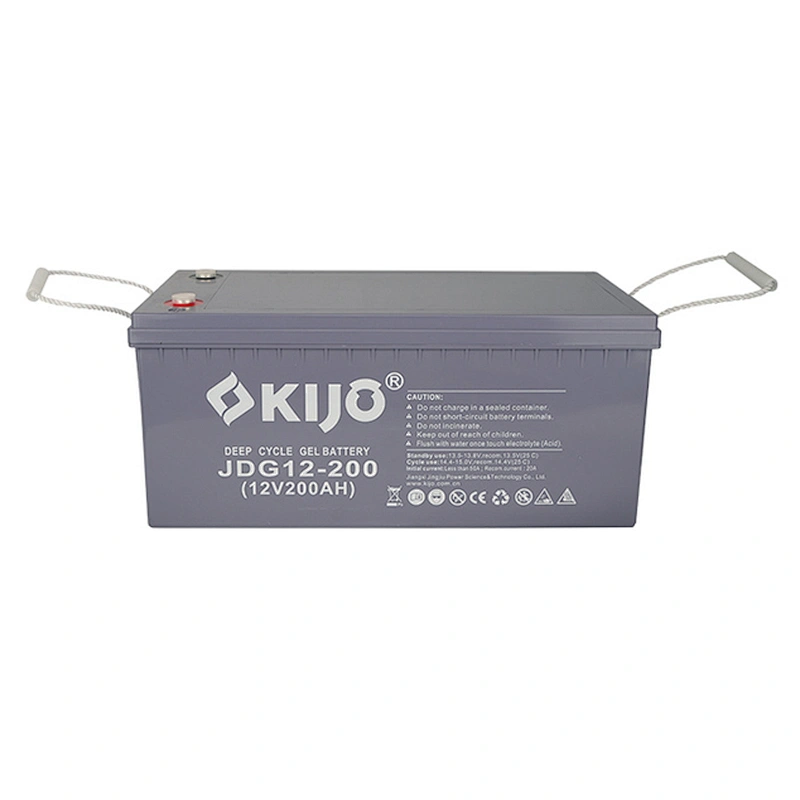

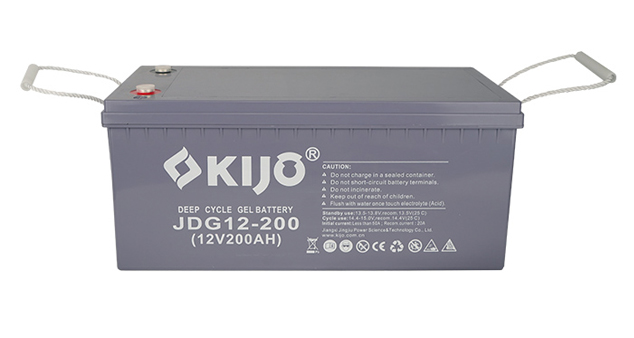

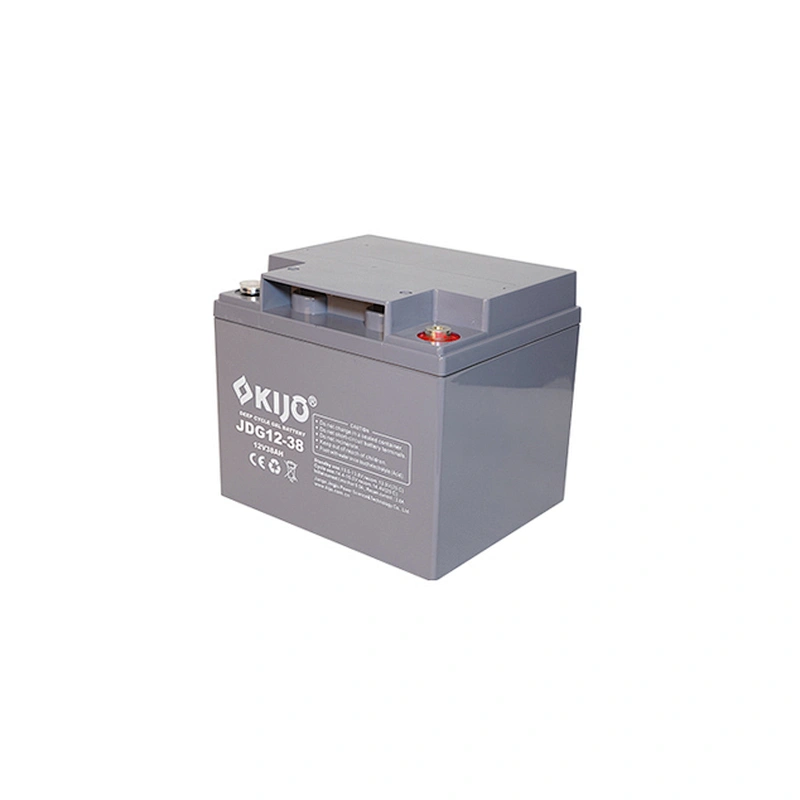

JDG Series (AGM GEL Deep Cycle Battery)
JDG Series (AGM GEL Deep Cycle Battery)
JDG Series (AGM GEL Deep Cycle Battery)
JDG Series (AGM GEL Deep Cycle Battery)
JDG Series (AGM GEL Deep Cycle Battery)
JDG Series (AGM GEL Deep Cycle Battery)
JDG Series (AGM GEL Deep Cycle Battery)
JDG Series (AGM GEL Deep Cycle Battery)
JDG Series (AGM GEL Deep Cycle Battery)
JDG Series (AGM GEL Deep Cycle Battery)
JDG Series (AGM GEL Deep Cycle Battery)

JDG Series (AGM GEL Deep Cycle Battery)

Model NO.
JDG Series
Quantity:
By combining the newly developed Nanometer Gel electrolyte, high tin content cathode plate, and AGM separator, the JDG series battery enjoys excellent discharging performance, long cycle life, and stable performance at high and low temperature surrounding. JDG series is suited for all kinds of ranges for energy storage, especially for renewable solar energy systems, etc.

Specification of JDG Series (AGM GEL Deep Cycle Battery)

ModelNominal Voltage (V)Capacity
(C10)
DimensionWeightTerminal
AhLengthWidthHeightTotal Heightkglbs
mminchmminchmminchmminch
JDG12-3312332108.271305.121676.571676.5710.222.49M6
JDG12-4012401977.761656.501726.771726.7712.527.56M6
JDG12-5012502299.021385.432058.072088.1915.534.17M6
JDG12-5512552299.021385.432058.072088.1916.536.38M6
JDG12-65126535013.781666.541756.891756.8920.645.42M8
JDG12-70127025810.161686.612088.192118.3122.549.60M6
JDG12-85B128526110.281696.652128.352158.4626.057.32M6
JDG12-95129530712.091686.612118.312148.4328.061.73M6
JDG12-100A1210033012.991716.732168.502198.6229.565.04M8
JDG12-120B1212040716.021736.712379.332379.3337.282.01M8
JDG12-120C1212040716.021736.712379.332379.3333.573.85M8
JDG12-150C1215048419.061706.692419.492419.4947.0103.62M8
JDG12-150F1215048419.061706.692419.492419.4944.097.00M8
JDG12-200B1220052220.552409.452198.622228.7459.0130.07M8
JDG12-200C1220052220.552409.452198.622409.4559.0130.07F16
JDG12-200G1220052220.552409.452198.622228.7461.5135.58M8
JDG12-2501225052020.4726810.552208.662238.7868.0149.91M8

Characteristic of JDG Series (AGM GEL Deep Cycle Battery)

  • Valve sealed design, no free electrolyte, Maintenance-free

  • Designed floating service life:15 years @ 25 °C/68 °F.

  • Wide operating temperature range from -15°C to 35°C

  • Nanometer gel electrolytes eliminate the acid stratification and prolong cycle life

  • Low self-discharge rate: ≤3%/month.

Application of JDG Series (AGM GEL Deep Cycle Battery)

  • UPS Systems

  • Portable Equipment

  • Renewable Energy Systems

  • Electric Utilities

  • Outdoor control Equipment

  • Railroad Utilities

  • Telecom Systems

  • Wheelchair

  • etc.
