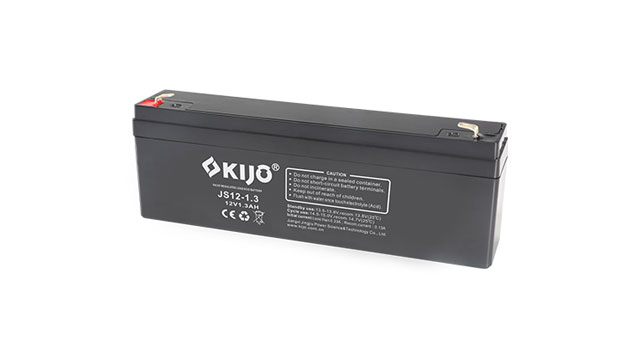

JS Series (AGM Battery)

Model NO.: JS Series

Quantity:

Product Description

JS series battery is a general-purpose battery with stable performance, it is suitable for power supply in different industries or backup power supply equipment, etc.

Specification of JS Series (AGM Battery)

Model	Normal Voltage (V)	Capacity (C20)	Dimension								Weight		Terminal
		Capacity (C20)	Lenth		Width		Height		Total Height		Kg	Lbs
		(Ah)	mm	inch	mm	inch	mm	inch	mm	inch	Kg	Lbs
JS6-4	6	4	70	2.76	47	1.85	101	3.98	106	4.17	0.68	1.49	F1/F2
JS6-5B	6	5	70	2.76	47	1.85	101	3.98	106	4.17	0.75	1.65	F1/F2
JS6-5.5	6	5.5	70	2.76	47	1.85	101	3.98	106	4.17	0.85	1.87	F1/F2
JS6-5.5B	6	5.5	70	2.76	47	1.85	101	3.98	106	4.17	0.80	1.7	F1/F2
JS6-7.0	6	7.0	151	5.94	34	1.34	94	3.7	100	3.94	1.02	2.25	F1/F2
JS6-8.0	6	8.0	151	5.94	34	1.34	94	3.7	100	3.94	1.15	2.54	F1/F2
JS6-9.0	6	9.0	151	5.94	34	1.34	94	3.7	100	3.94	1.23	2.71	F1/F2
JS6-10.0	6	10.0	151	5.94	51	2.01	94	3.7	100	3.94	1.49	3.28	F1/F2
JS6-12.0	6	12.0	151	5.94	50	1.99	94	3.7	100	3.94	1.60	3.53	F1/F2
JS6-14.0	6	14.0	151	5.94	51	2.01	94	3.7	100	3.94	1.75	3.86	F1/F2

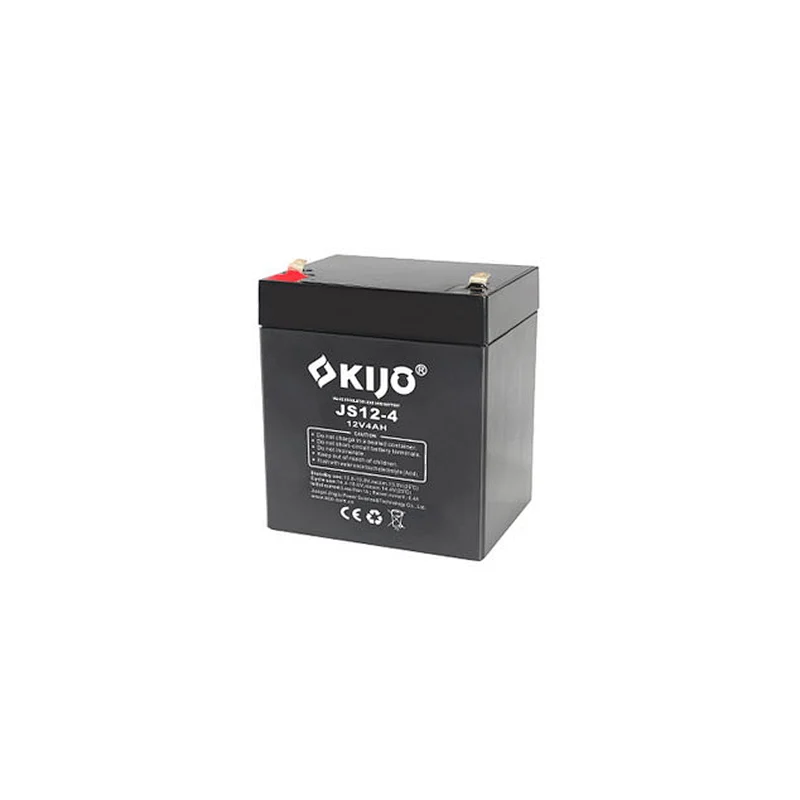

JS12-4.0	12	4	90	3.54	70	2.76	101	3.98	106	4.17	1.33	2.93	F1/F2
JS12-5B	12	5.0	90	3.54	70	2.76	101	3.98	106	4.17	1.46	3.21	F1/F2
JS12-5.5	12	5.0	90	3.54	70	2.76	101	3.98	106	4.17	1.68	3.70	F1/F2
JS12-5.5B	12	5.5	90	3.54	70	2.76	101	3.98	106	4.17	1.55	3.41	F1/F2
JS12-6.6	12	6.6	151	5.94	65	2.56	94	3.7	100	4.17	1.86	4.10	F1/F2

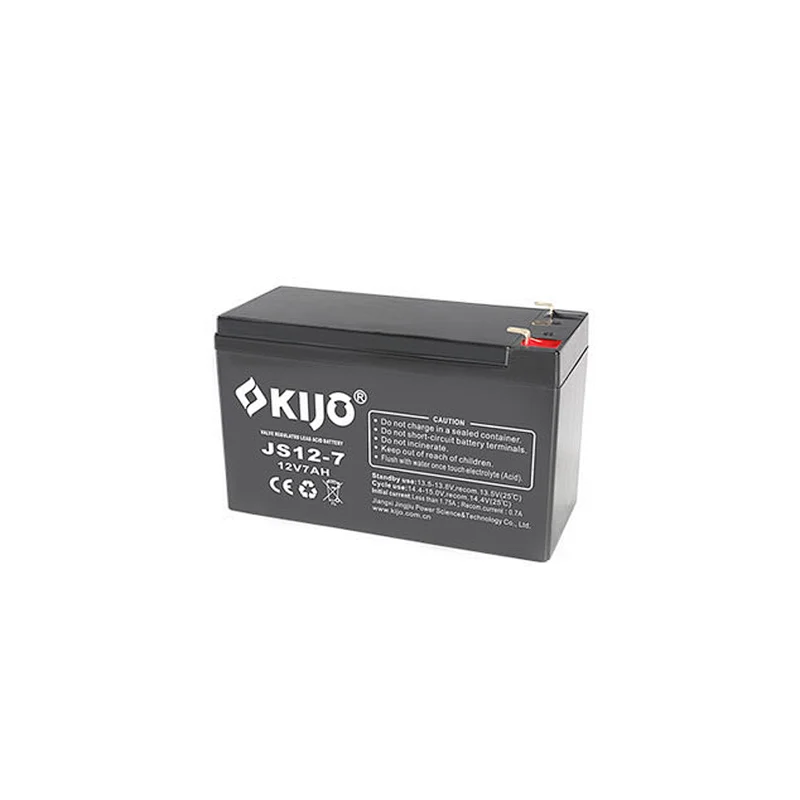

JS12-7.0	12	7	151	5.94	65	2.56	94	3.7	100	3.94	2.0	4.41	F1/F2
JS12-7B	12	7	151	5.94	65	2.56	94	3.7	100	3.94	2.0	4.41	F1/F2/F3
JS12-8B	12	8	151	5.94	65	2.56	94	3.7	100	3.94	2.12	4.67	F1/F2
JS12-8.5	12	8.5	151	5.94	65	2.56	94	3.7	100	3.94	2.26	4.98	F1/F2
JS12-9A	12	9	151	5.94	65	2.56	94	3.7	100	3.94	2.51	5.53	F1/F2
JS12-9C	12	9	151	5.94	65	2.56	94	3.7	100	3.94	2.53	5.58	F1/F2
JS12-9D	12	9	151	5.94	65	2.56	94	3.7	100	3.94	2.53	5.58	F1/F2
JS12-9E	12	9	151	5.94	65	2.56	94	3.7	100	3.94	2.45	5.40	F1/F2
JS12-10A	12	10	151	5.94	98	2.56	95	3.74	100	3.94	3.1	6.83	F1/F2

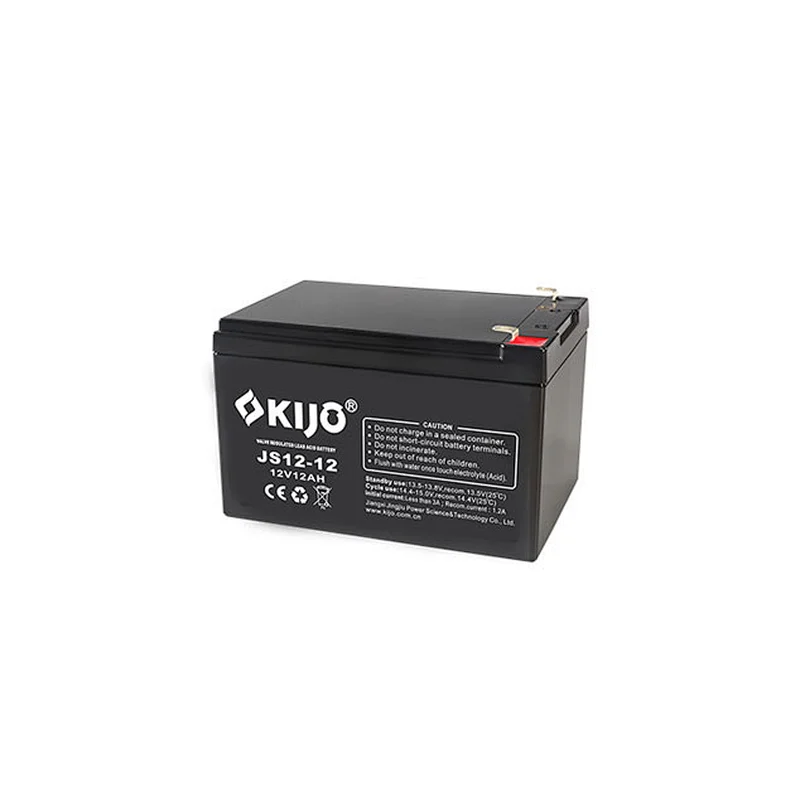

JS12-12A	12	12	151	5.94	98	2.56	95	3.74	100	3.94	3.4	7.50	F1/F2
JS12-14A	12	14	151	5.94	98	2.56	95	3.74	100	3.94	3.7	8.16	F1/F2

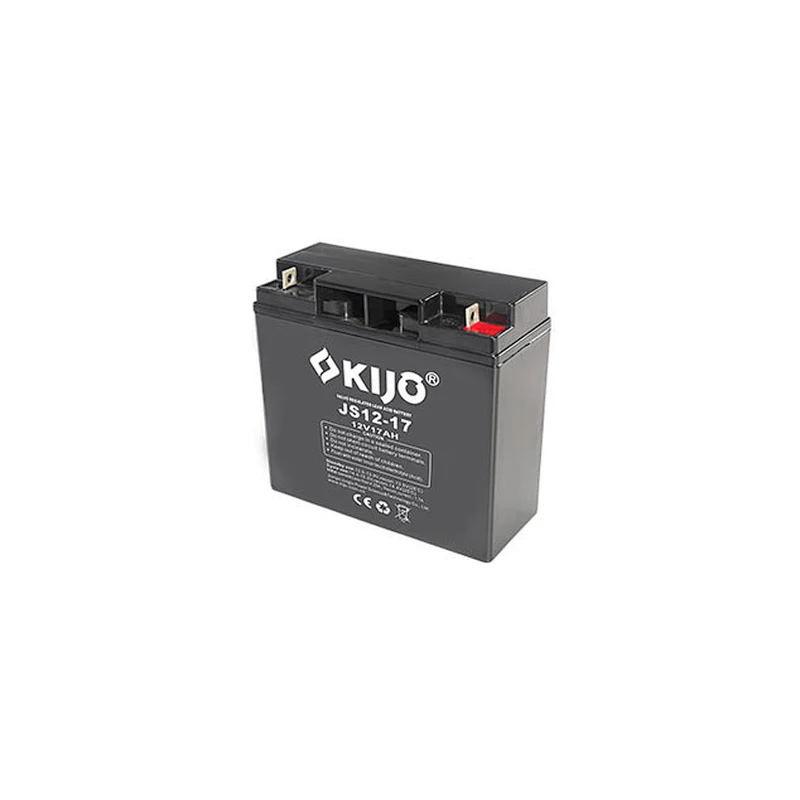

JS12-17A	12	17	181	7.13	76	2.99	167	6.58	167	6.58	5.0	11.02	L1
JS12-17B	12	17	181	7.13	76	2.99	167	6.58	167	6.58	5.0	11.02	M5

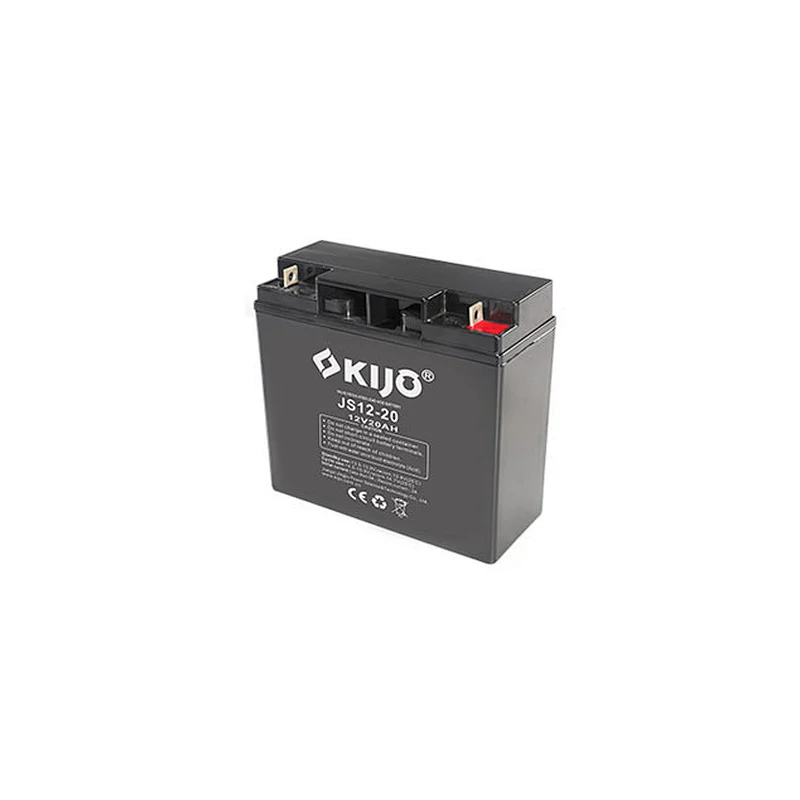

JS12-20A	12	20	181	7.13	76	2.99	167	6.58	167	6.58	5.5	12.13	L1
JS12-20B	12	20	181	7.13	76	2.99	167	6.58	167	6.58	5.5	12.13	M5
JS12-22A	12	22	181	7.13	76	2.99	167	6.58	167	6.58	5.8	12.79	L1
JS12-22B	12	22	181	7.13	76	2.99	167	6.58	167	6.58	5.8	12.8	M5

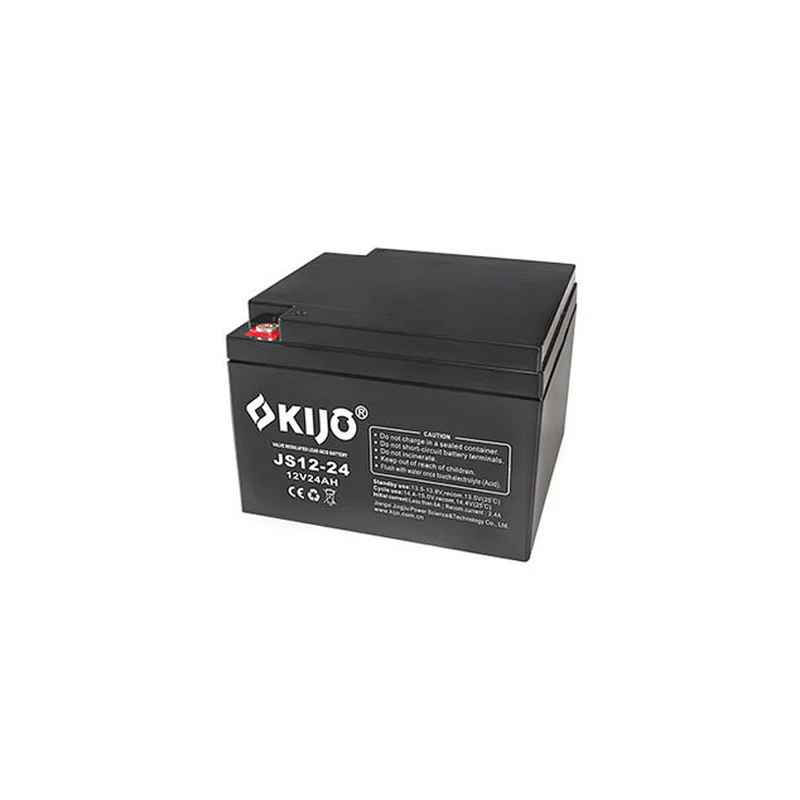

JS12-24	12	24	165	6.50	125	4.92	175	6.89	175	6.89	7.3	16.09	M6
JS12-24W	12	24	175	6.89	166	6.54	125	4.92	125	4.92	7.2	15.87	M5

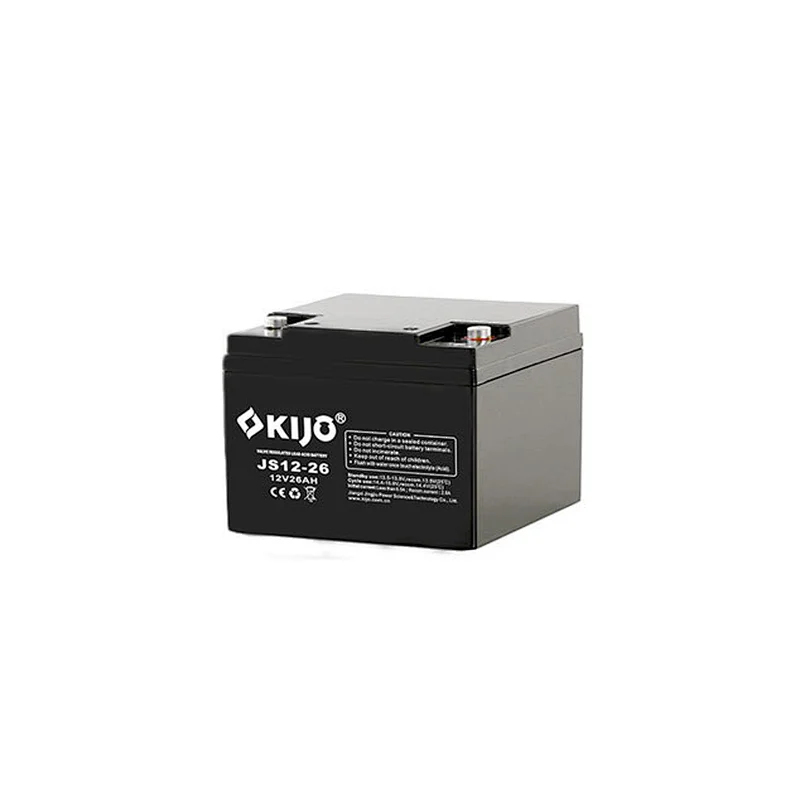

JS12-26	12	26	165	6.50	125	4.92	175	6.89	175	6.89	8.2	18.08	M6
JS12-26W	12	26	175	6.50	166	4.92	125	6.89	125	6.89	7.7	16.98	M5
JS12-28W	12	28	175	6.89	166	6.54	125	4.92	125	4.92	8.0	17.64	M5

Characteristic of JS Series (AGM Battery)

Sealed structure, maintenance-free (No need to add water during using process)
Designed floating service life: 5 years @ 25˚C
Stable performance, small internal resistance, and good high-rate discharge performance.
Self-discharge rate ≤ 3% / month

Application of JS Series (AGM Battery)

UPS uninterrupted power supply, toys, lamps and lanterns, computers, emergency and security system, cameras, portable equipment, medical equipment, electronic said, rolling shutter door, outdoor mobile speakers, electric scooter, electronic cash registers.etc.

Send Message

Name

Company Name

Phone

Country

Message Content

Related Products

JH Series (High rate battery)

Model NO. JH Series

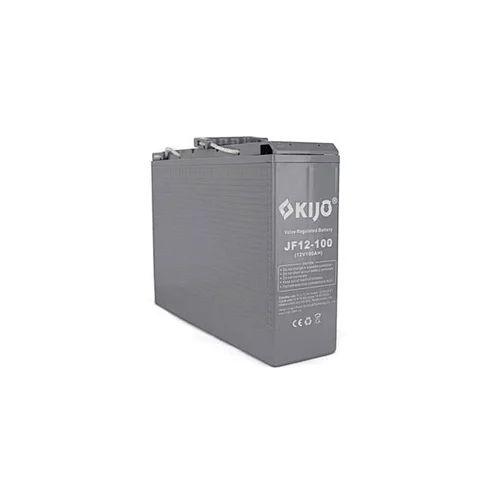

JF Series (Front Terminal Battery)
